XINPUGUANG 18V 100 W 200 WATT 300W 400W Flexible Solar Panel kit e for 12V 24V battery car RV home outdoor Power charging
 |
| XINPUGUANG 18V 100 W 200 WATT 300W 400W Flexible Solar Panel kit e for 12V 24V battery car RV home outdoor Power charging |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -15%New User Deal |
| Product id | 4000809148705 |
| Vendor | xinpuguang Official Store |
| Category | Consumer Electronics - Power Source |
Description :

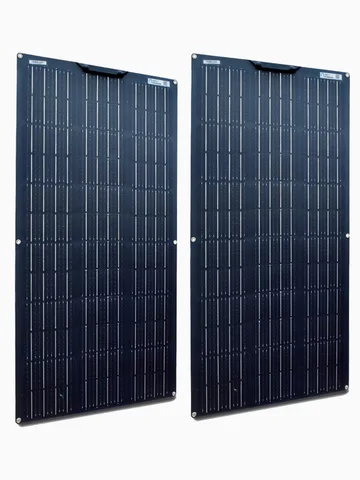

XINPUGUANG 18V 100 W 200 WATT 300W 400W Flexible Solar Panel kit e for 12V 24V battery car RV home outdoor Power charging
Shipping Information
For Europe Client: Ship from Spain or Czech or Belgium Warehouse, Including VAT TAX, 3-10 days arrival via DHL or Post, DPD.
For USA Client: Ship from USA Warehouse, Including VAT TAX, 3-10 days arrival via Post, UPS.
For Russia: Ship from Moscow Warehouse, Including VAT TAX, Fast arrival via Russia Post.
More Oversea Warehouse will open later.
For Spain Island and France Island, there may be extra remote freight cost, so if there were remote cost, then we will contact with buyer.
For USA Client: there are remote area as well, so if your area belongs to remote area, we will contact with you as well.
Features:

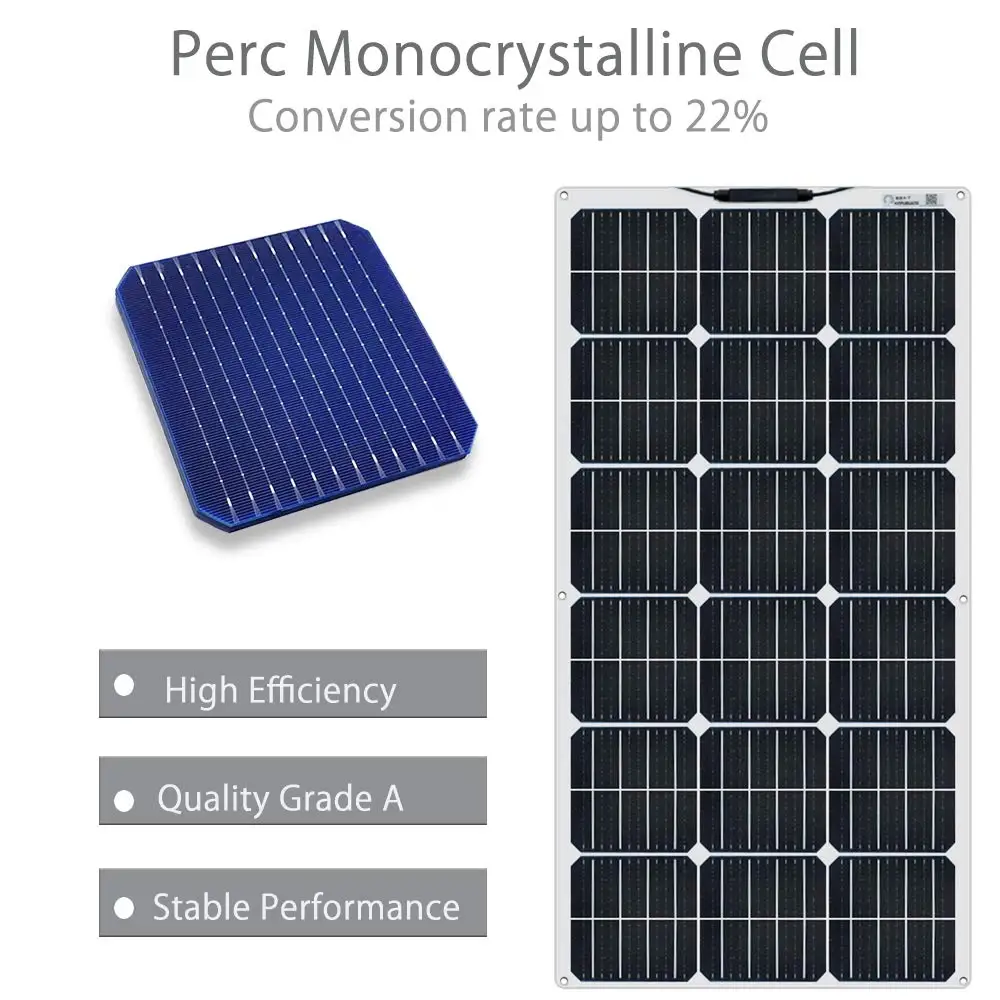

a. Select high-efficiency 161 * 161mm 12 main lines monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polysilicon, and the overall area is smaller at the same power.
b. Using the latest component packaging technology, thinner, lighter, softer and longer life.
c. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
d. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
e. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.
f. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

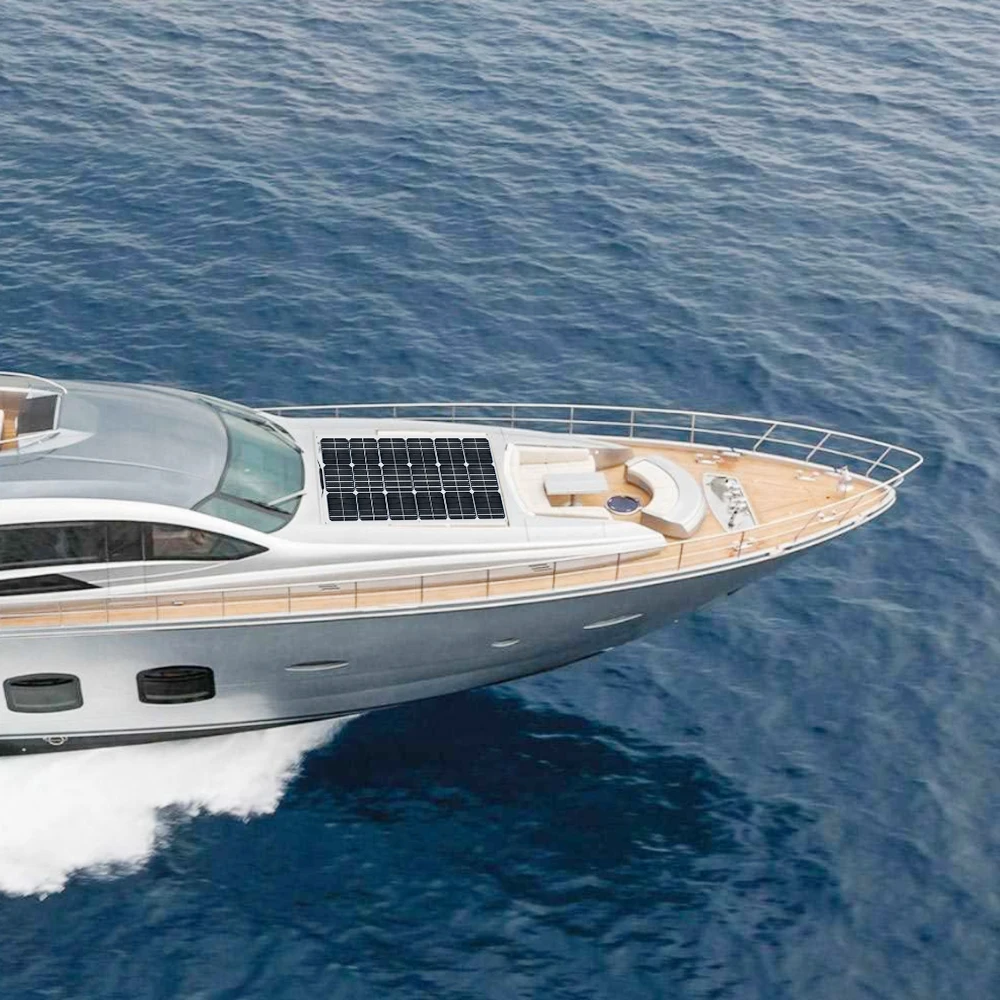

g. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations.
Solar panel Technician Specification

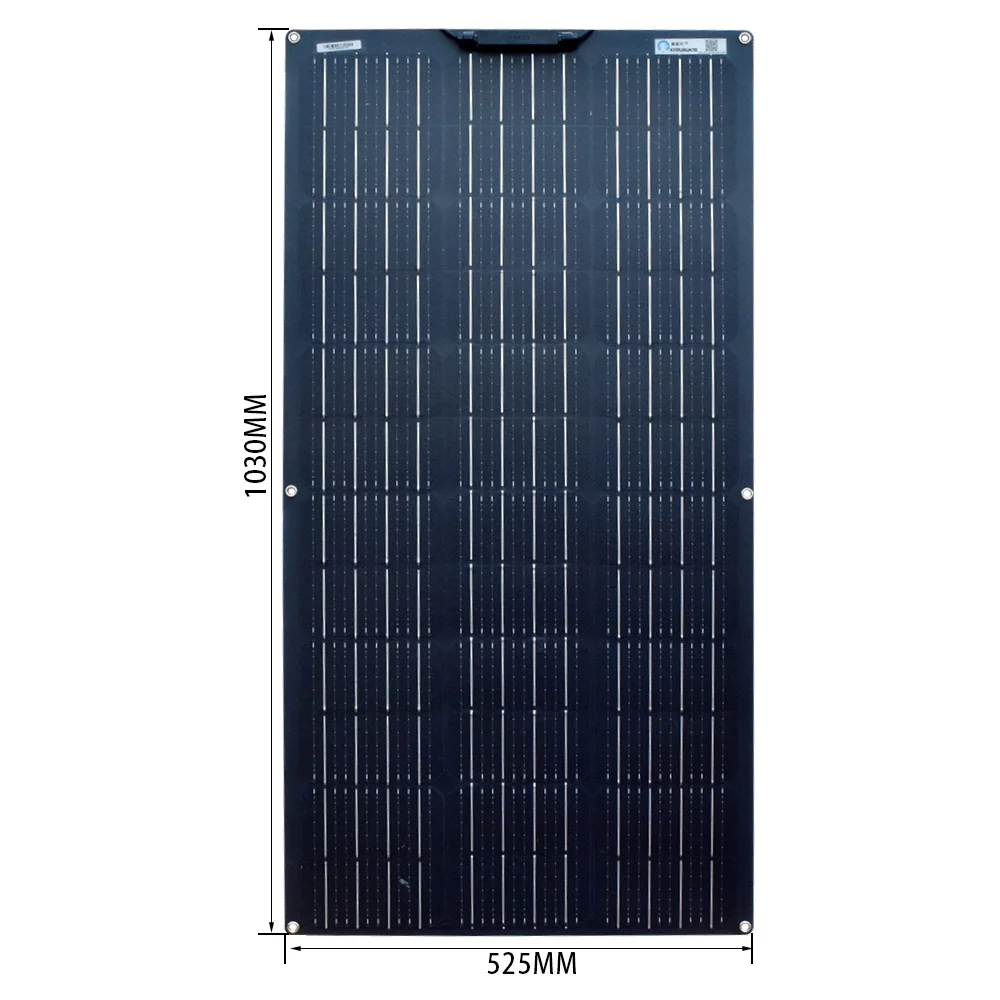

| Length | 1030mm | Weight | 1850 G |
| Width | 525 mm | Main material | Monocrystalline silicon |

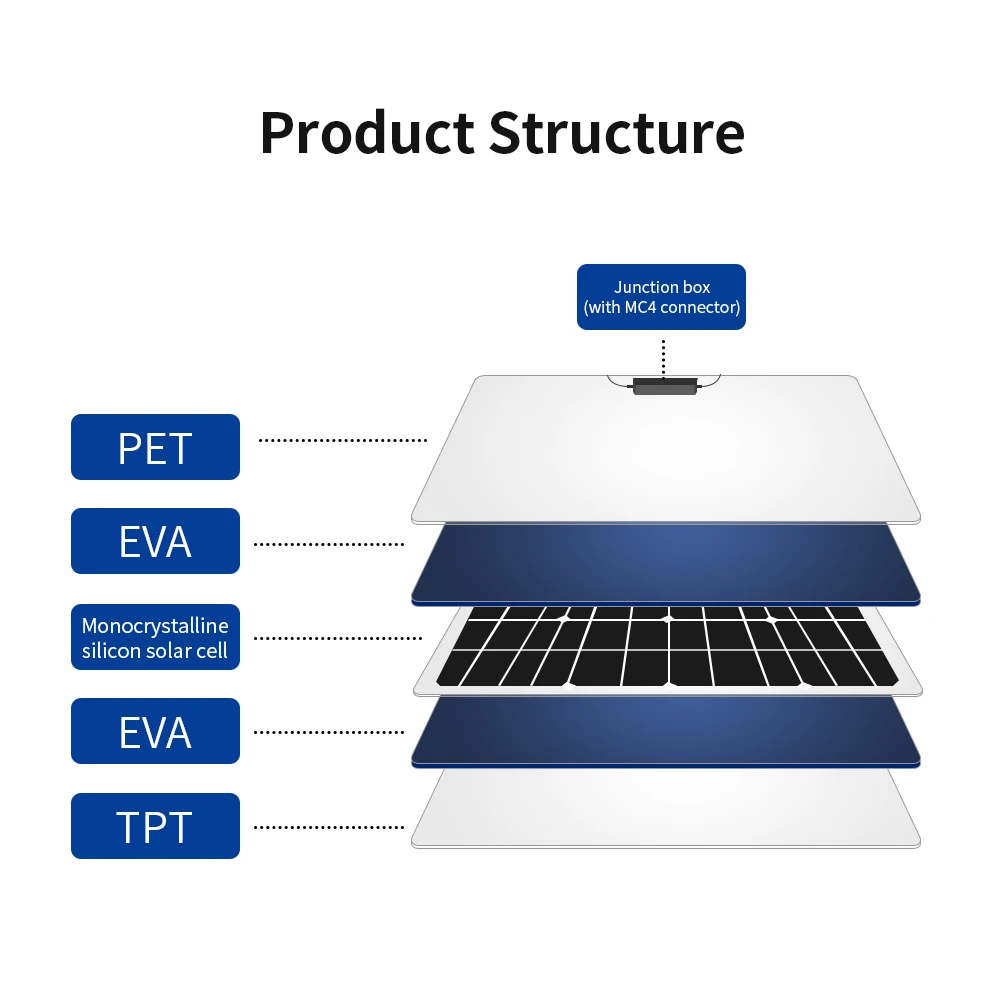

| Height | 2.5 mm | Frame material | PET+EVA+Cell+TPT |
Solar panel Electrical Specification
Performance Under Standard Test Conditions(STC*)
| Maximum power | Pmax | 100 Wp |
| Open circuit voltage | Voc | 21.6 V |
| Maximum power point voltage | Vmpp | 18 V |
| Short-circuit current | I sc | 6.11 A |
| Maximum power point current | I mpp | 5.55 A |
Minor reduction in efficiency under partial load conditions at 25degC: at 100 W/m2, 95%- (+/-3%) of the STC efficiency (1000 W/m2) is achieved.
Solar panel Component Material
| Cells per module | 36 | Cell dimensions | 161mm*161mm/161*80.5mm |
| Cell type | Monocrystalline Silicon | Front | EVA+Plastic Cover |
System Intergration Technician
| Maximum system voltage SC II | 1000 V | Maximum reverse current | 10 A |
| Maximum system voltage USA NEC | 600 V | Increased snowload acc. to IEC 61215 | 5.4 kN/msup2; |
Thermak Characteristics
| NOCT | 47 degC | TC Voc | -0.33 %/degC |
| TC Isc | 0.042 %/degC | TC Pmpp | -0.45 %/degC |
Solar panel Extra Specification
| PTC rating | 100 W | Module efficiency | 21.0% |
| Junction box | IP67 | Plus-Sorting* | Pflash ge Pmax |
| Cable Length | 0.9 M | Power tolerance* | +/- 5 % |

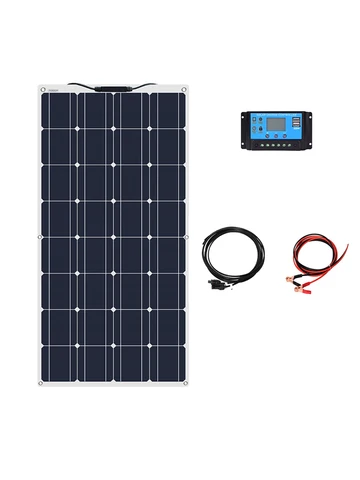

100W kit (1pcs 100w solar panel kits)
Packing listing：
1. 1 pcs 100w solar panel
2. 10A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
100W kit Black (1pcs 100w black solar panel kits)
Packing listing：
1. 1 pcs 100w solar panel
2. 10A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）

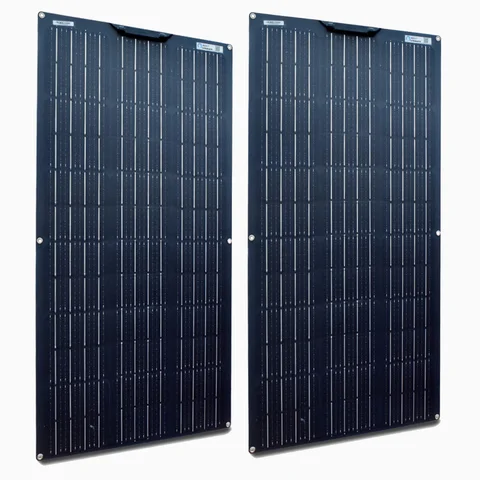

200W kit (2pcs 100w solar panel kits)
Packing listing：
1. 2pcs 100w solar panel
2. 20A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 2 in 1 PV connector （in parallel solar panel）
200W kit Black (2pcs 100w black solar panel kits)
Packing listing：
1. 2pcs 100w solar panel
2. 20A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 2 in 1 PV connector （in parallel solar panel
300W kit (3pcs 100w solar panel kits)
Packing listing：
1. 3pcs 100w solar panel
2. 30A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 3 in 1 PV connector （in parallel solar panel
300W kit Black (3pcs 100w black solar panel kits)
Packing listing：
1. 3pcs 100w solar panel
2. 30A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 3 in 1 PV connector （in parallel solar panel
400W kit (4pcs 100w solar panel kits)
Packing listing：
1. 4pcs 100w solar panel
2. 40A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）
5. 1 set 4 in 1 PV connector （in parallel solar panel
Notes for use:
a. This product must not come into contact with highly corrosive substances.
b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.
c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.
d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.
e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.
f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.
g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.
h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.
i. The inverter can only be connected to the battery, not directly to the controller.
