250V 200AH Smart Pulse Automatic Repair 12/24V Car Battery Charger 5 Stage Intelligent Charging For Truck Motorcycle RU Version
 |
| 250V 200AH Smart Pulse Automatic Repair 12/24V Car Battery Charger 5 Stage Intelligent Charging For Truck Motorcycle RU Version |
| Name | Details |
|---|---|
| Buy now just | |
| Discount | -37% |
| Product id | 32918188013 |
| Vendor | LUNDA Shop. Online Store |
| Category | Automobiles & Motorcycles - Auto Replacement Parts |
Description :

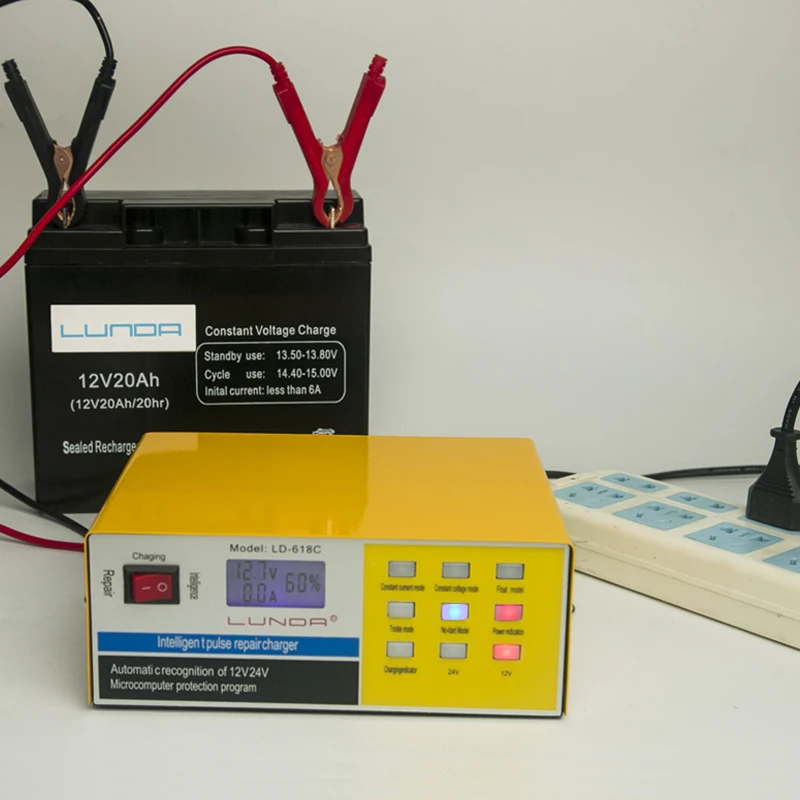

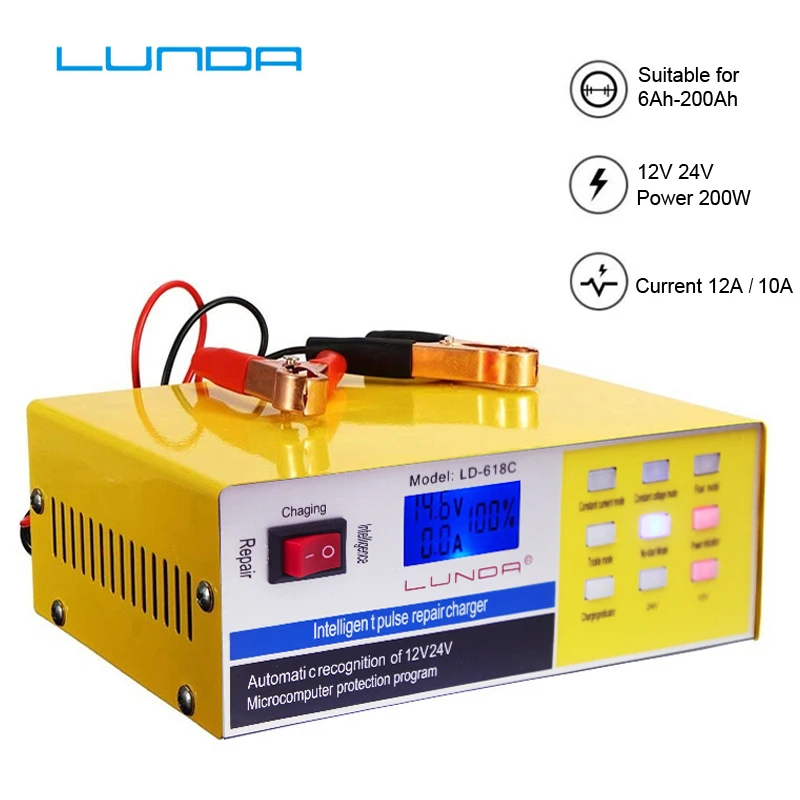

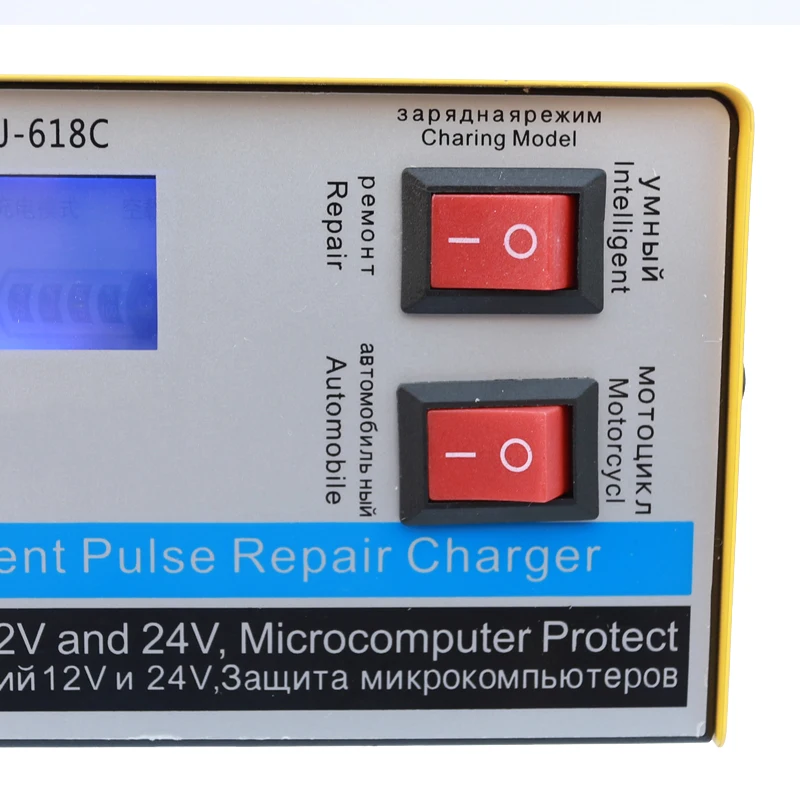

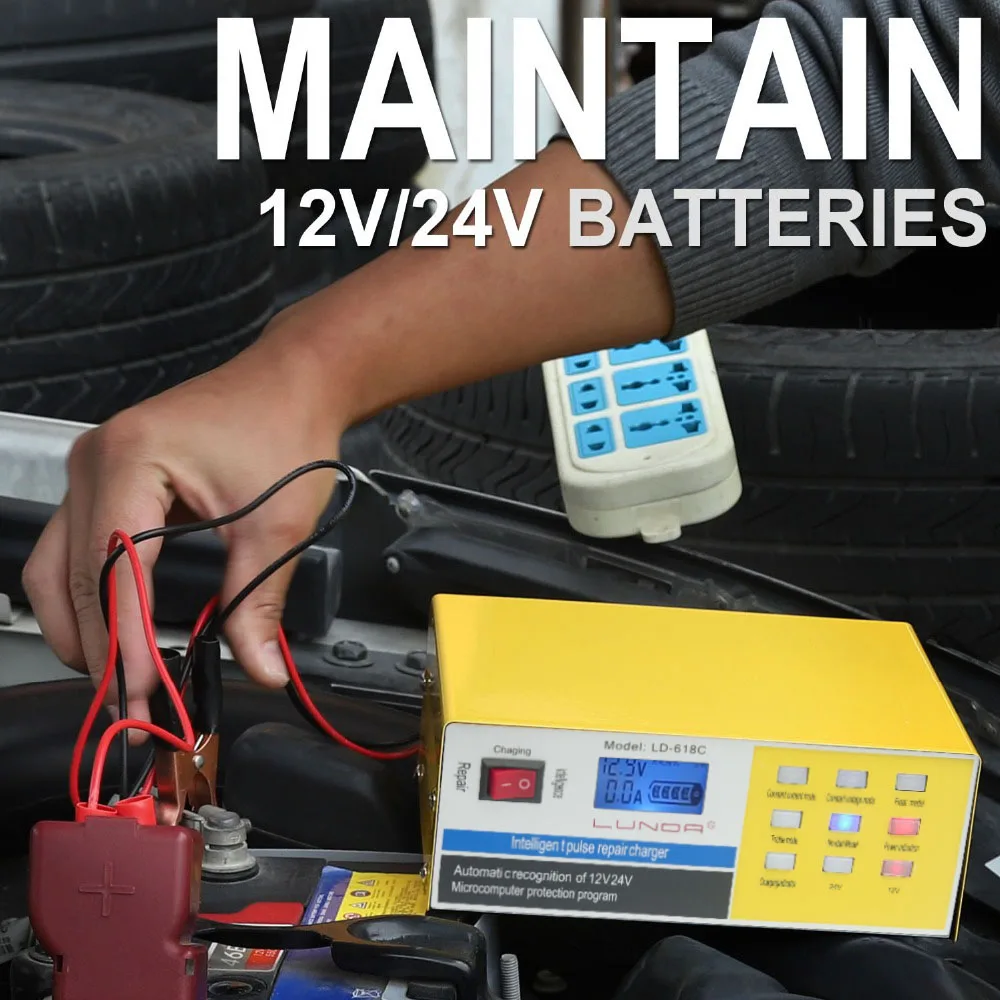

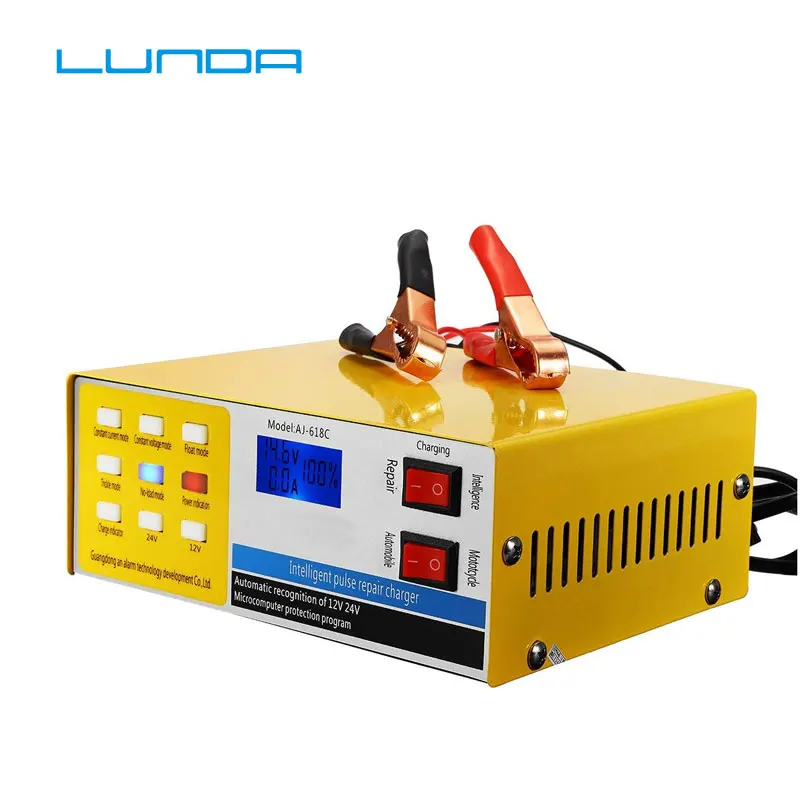

Car Battery Charger
1.Applicable to the 12V/24V lead acid battery. 2.Advanced pulse width modulation (PWM) technology. 3.Five Charging Modes: No-load Mode/Constant Current Mode/Constant Voltage Mode/Float Mode/Trickle Mode. 4.The battery life can be significantly improved by digital pulse repairing method for the power chips of microcomputers. Package Included: 1 X Car Battery Charger 1 X User Manual For 12V/24V, 6-200AH Lead Acid Battery or Lithium Battery of motorcycles, van, sport utility vehicle etc.
For 12V/24V,6-200AH Lead Acid Battery or Lithium Battery of motorcycles,van sport utility vehicle etc.
| Car Battery Charger | power:220W |
| Output voltage: 12/24V | Input Voltage：130V-250V |
| Gross weight：800g | Output current:12V-12A 2V-10A |
| Capatity：30-200AH | dimension：180*145*70mm |
| Application: best suitable for 12、24v、lead acid batteries(including wet and dry)
| |
We have two versions of different language choices. English Version and Russian Version.
English Version
Russian Version

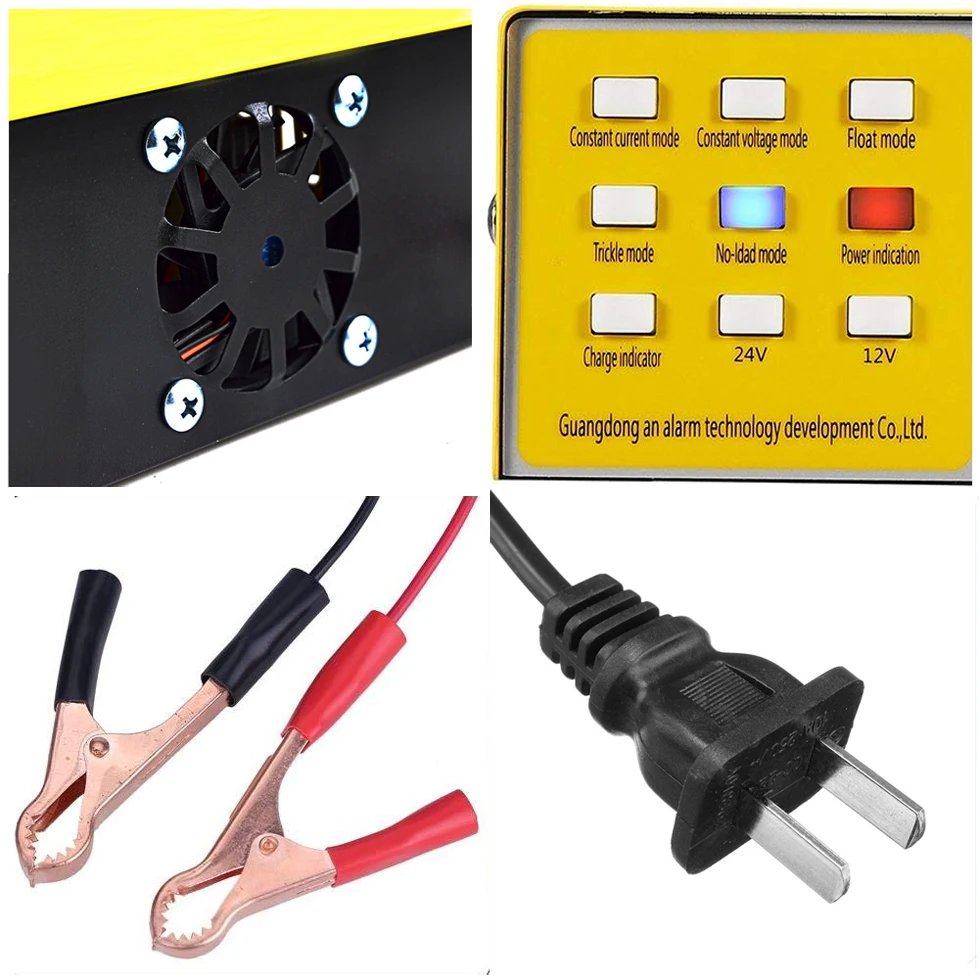

| LED | Introduction | 5-Stage Mode |
| 24V | Light On | For 24V Battery |
| 12V | Light On | For12V Battery |
| Mode | Press | 12/24V Battery |
| No-load Mode | when there has no load connected with charger,the LED Screen will show voltage only,the power is about 2W; | |
| Constant Current | means the battery voltage is lower than the set voltage of charger,then the charger supply constant charging current to maintenance both battery and battery charger; | |
| Constant Voltage | advanced pulse width modulation (PWM) technology,control the charger's current and output voltage accurate,avoid overcharge; | |
| Floating charge | when the battery is going to be charged full,the charger will stop charging,but still supply constant floating voltage and small current to battery; | |
| Trickle charge | when the battery voltage and current is approaching the set voltage and current,it will turn to trickle floating charge from automatic mode,it means charge full,also can be charged with floating mode.
| |
This item can be used both 110V/220V of input AC power.
VI. Charging operation
Step 1, Examine and make sure rated voltage of battery is conforming to output voltage of charger.
Step 2, Connect correctly the charger and the battery.
Step 3, Examine and make sure mains supply voltage is conforming to input voltage of the charger.
Step 4, Connect mains supply and the battery, watch to see if the indicator is on and the cooling fan is working when charging.
Step 5, if the charger refuse to work, turn off mains supply immediately and check all the connecting cables between mains supply, the battery and the charger.
| After only a few minutes or even shorter time, the battery indicates fully charged. | 1. Examine to see if there is overcurrent protection, overheat protection or low voltage protection resulted out of non-conforming voltage, and also examine if cooling fan is working. 2. Maybe the battery is consumed up or already fully charged (better test again after discharging or take other battery for testing purpose). 3. Add battery tune-up treatment or distilled water. 4. Examine and make sure output clips from charger is well connected to battery poles. |
| Battery shell is heating when charging or the battery can’t be fully charged after a long time's charging. | 1. Check to see if there is short circuit in battery, which shall result in failure of charging voltage reaching the charger's preset voltage. 2. There is a leakage 0.3A≥ in battery. 3. Defective materials or workmanship is used in battery production. Genuine batteries are strongly recommended. 4. Replace battery and test again. |
| The charger beeps for alarming or refuses to work though all cables are correctly connected. | 1. Examine the battery to see if there is low voltage protection due to badly power insufficiency (non-conforming voltage). 2. Termination of service life due to long-time stalledness or short circuit due to large internal resistance. 3. Check to see if the battery still beeps for alarming when connected only to mains supply unloaded. 4. Replace battery and test again. |
For vehicle batteries, motorcycle batteries (small volume) which have been laid unused for a long time, the charging indicator may not go ON when charging (due to small current requirement resulted out of large internal resistance).In this situation, you can charge at the same time of huge power discharging (consumption).By this means you can judge if the charger is defective, and at the time the charging indicator will flash.(Normally, you can continue to floating charge for approximately 1 hour after the charging indicator turns Off until the fully charged. At this time, the battery is in excellent condition, you can use freely) (Though the indicator does not flash, the charger is in fact charging the battery in trickle floating mode. And, once large current need from the battery is detected by the charger, the indicator will go flashing).
SPECIAL NOTICE:
1. Charging batteries of leakage for the first time shall be under manual monitoring. To avoid overcharging and bubbling, for the 1st and 2nd time, charging shall be stopped immediately once temperature rise is found of the battery. Temperature rise indicates that the battery is full before being charged or there is leakage which does not influence its usage.
2. When the charger is charging the battery, the cooling fan shall be working regularly.
3. An adjustable charger can adjust current size in accordance with battery needs for a better battery protection. For example, if the current is 30A before charging, you are advised to decrease to 25A. Similarly, if 25A, you are advised to decrease to 20A. The 20% spacing shall better protect your battery as well as your charger.
If the battery is not needed urgently, you are advised to charge by 1/10, i.e. 10AH battery to 1A charging current.
Best Price Comparison With 250V 200AH Smart Pulse Automatic Repair 12/24V Car Battery Charger 5 Stage Intelligent Charging For Truck Motorcycle RU Version

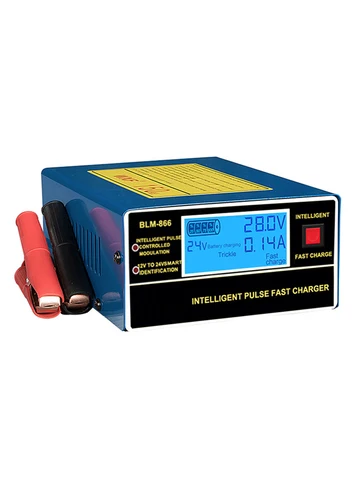

10A 220V Lead Acid Battery Chargers 12v 24V Smart Fast Charging LCD Display Full Automatic Motorcycle Truck Car Battery Charger
Buy Now On Aliexpress
Custom Car floor mats for audi A1 A3 A4 2003-2008A5 A6 A7 A8 Q3 Q5 SQ5 Q7 AVANT RS5 RS6 RS7 internal Accessories Car styling
Buy Now On Aliexpress
LUNDA Car Steering Wheel Cover Top CowhidLeather Braid Cover Cap Anti-slip Car Decoration 38CM for Nissan, Honda,Toyota, DS
Buy Now On Aliexpress

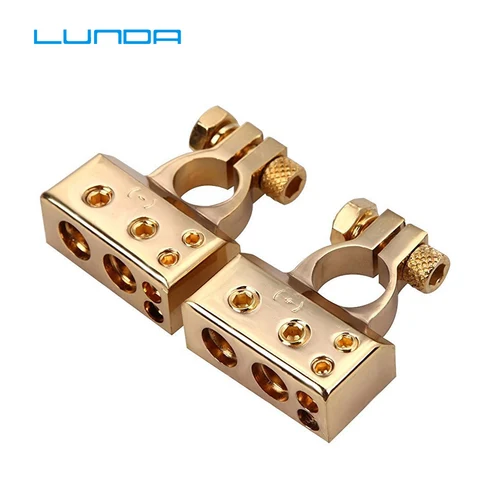

LUNDA Gold-plated Car Battery Terminal Positive /negative Car battery Connector Battery Caps Terminal Connector
Buy Now On Aliexpress

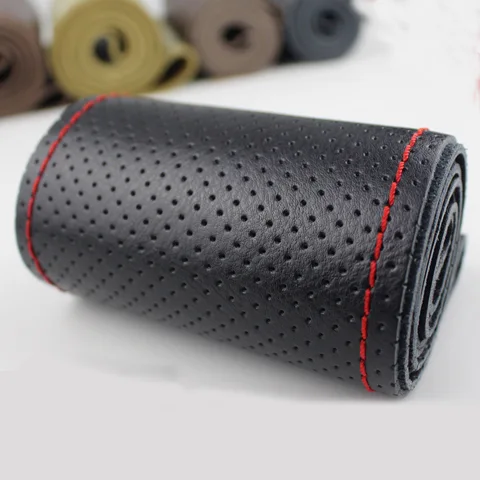

LUNDA DIY Genuine leather steering wheel cover soft Sew steering cover for diameter 38cm Classical car steering wheel
Buy Now On Aliexpress

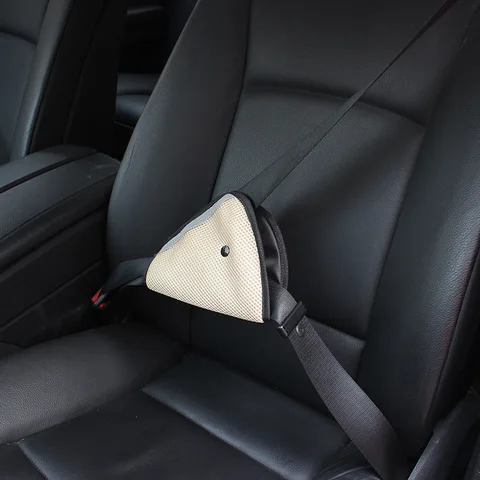

Kid Breathable Mesh fabric Car Safe Fit Seat Belt Adjuster car safety belt adjust device for baby child protector positioner
Buy Now On Aliexpress
1PC Car Seat Back PU leather Protector dust-proof for Children/ Baby kick Mat Protect from Mud Dirt waterproof car seat cover
Buy Now On Aliexpress

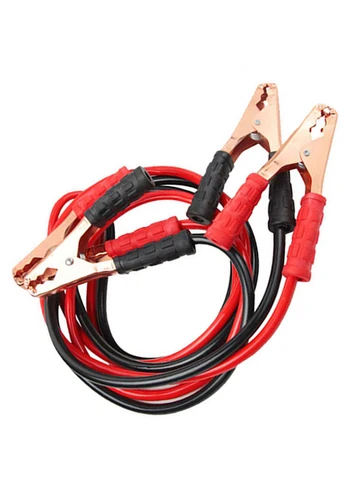

LUNDA Jumper Battery Cables 2M 500AMP 1000AMP 2.5M 1800AMP Booster Cable Emergency for Car VanTruck Terminals Jump Starter Leads
Buy Now On Aliexpress

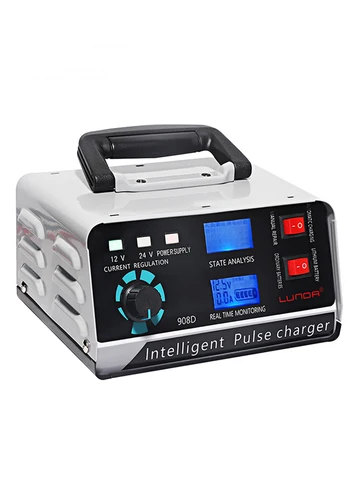

LUNDA Smart Battery Charger 12V/24V Automotive Battery Charger Maintainer 400Ah Trickle Charger for Car Truck Boat Motorcycle RV
Buy Now On Aliexpress

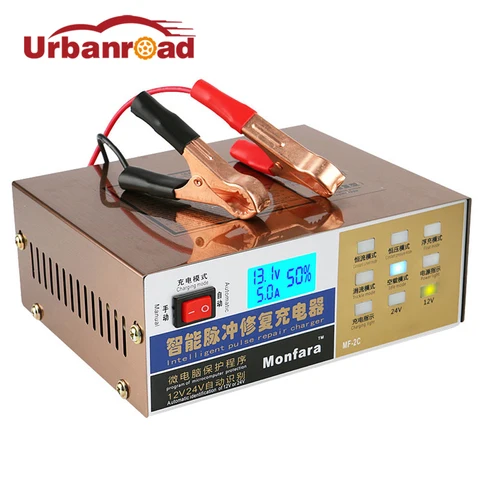

Car Battery Charger 12v 24v Full Automatic Electric Car Battery Charger Intelligent Pulse Repair Type 100AH for Motorcycle
